How to Connect 2 12V Batteries to Make 24V?

To establish a 24V system from two 12V batteries, connect the positive terminal of the first battery to the negative terminal of the second. The remaining terminals, one positive and one negative, are then connected to the device that needs power. This arrangement, known as a series connection, effectively doubles the voltage while maintaining the same capacity.

I’m your friendly neighborhood battery expert, and boy, do I have a treat for you today. You see, I’ve spent years, decades even, tinkering with batteries of all shapes and sizes. From the tiny button cells that power your wristwatches to the massive lead-acid beasts that start your cars, I’ve seen and handled them all.

But today, we’re going to dive into something that’s both fascinating and practical. We’re going to learn how to connect two 12V batteries to make a 24V system. Now, why would you want to do that, you ask? Well, there are plenty of applications that require a 24V power source, and sometimes, all you have on hand are a couple of 12V batteries.

So, buckle up, my friends. We’re about to embark on a fun and enlightening journey into the world of batteries. Trust me, by the end of this, you’ll be connecting batteries like a pro!

What are 12V and 24V Systems?

Alright, let’s dive right into the heart of the matter. When we talk about 12V and 24V systems, we’re referring to the voltage of the electrical system. Voltage, my friends, is the electrical equivalent of the pressure in your water pipes. It’s what pushes the electrical current (the water) through the wires (the pipes).

Explanation of 12V and 24V systems

A 12V system is pretty much the standard in most vehicles and boats. It’s the system that powers your car’s headlights, radio, and that little light in your glove box that you always forget about until it’s too late.

On the other hand, a 24V system is like the big brother of the 12V system. It’s used in larger vehicles like trucks and buses, and in industrial applications where more power is needed. It’s also becoming increasingly popular in renewable energy systems like solar power installations.

Differences between the two systems

Now, let’s look at the differences between these two systems. And to make it easier for you, I’ve put together a little table:

	12V System	24V System
Common Uses	Cars, boats, small appliances	Trucks, buses, industrial applications, renewable energy systems
Power	Suitable for smaller applications	Provides more power, suitable for larger applications
Efficiency	More efficient, less current is needed for high power applications	Can be more expensive due to higher-power components
Cost	Generally cheaper	Can be more expensive due to higher power components

So there you have it, folks. The 12V system is like your reliable family sedan, while the 24V system is the heavy-duty truck that gets the big jobs done. Both have their place and knowing how to work with both is a valuable skill in the world of batteries.

And remember, whether you’re dealing with a 12V or a 24V system, always handle batteries with care. They might not look like much, but they pack a punch!

How Do Batteries Work?

Now that we’ve got a handle on 12V and 24V systems, let’s take a step back and look at the magic behind it all – the humble battery. Batteries are like the unsung heroes of our modern world. They’re in our cars, our phones, our laptops, and so much more. But how do they work? Let’s find out.

Basic principles of battery operation

At its core, a battery is a device that stores electrical energy in a chemical form. It’s like a little chemical factory, converting chemical energy into electrical energy that we can use to power all sorts of devices.

A battery consists of one or more cells, each containing a positive electrode (the cathode), a negative electrode (the anode), and an electrolyte. When the battery is connected to a device, a chemical reaction occurs in the cells, creating a flow of electrons from the anode to the cathode. This flow of electrons is what we call electricity.

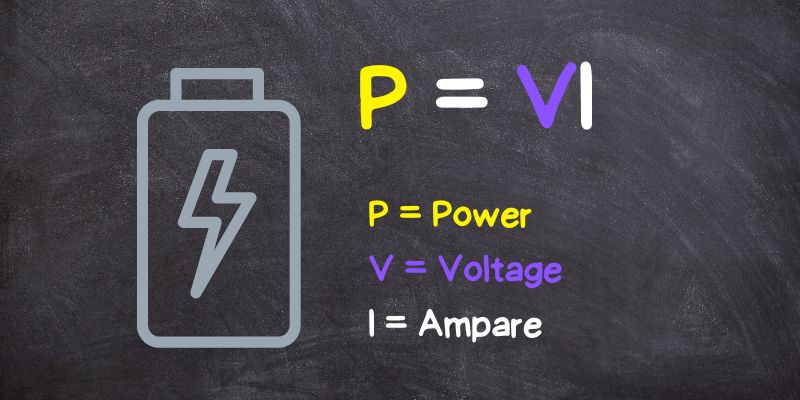

Explanation of terms like voltage, current, and power

Now, let’s break down some of the key terms we use when talking about batteries and electricity:

• Voltage (V): This is the electrical potential difference between two points. In simpler terms, it’s the ‘pressure’ that pushes the electrons (the electrical current) through a circuit. The higher the voltage, the more ‘pressure’ there is.
• Current (I): This is the flow of electric charge, measured in amperes (A). It’s like the flow of water in a pipe. The larger the current, the more electricity is flowing.
• Power (P): This is the rate at which energy is transferred or converted. It’s measured in watts (W) and is calculated by multiplying the voltage (V) by the current (I). So, a device that operates at 12V and 2A uses 24 watts of power.

So, there you have it, folks – a crash course in batteries and electricity. It’s a fascinating world, and the more you understand it, the better you’ll be at working with batteries and electrical systems. And remember, knowledge is power – quite literally in this case!

How to Connect Two 12V Batteries to Make 24V?

Alright, folks, it’s time to roll up our sleeves and get down to business. We’re going to connect two 12V batteries to make a 24V system. It’s a bit like playing with Lego but with electricity. Exciting, right? Let’s get started.

Step-by-step guide on connecting two 12V batteries to make 24V

1. Identify the terminals: Each battery has a positive (+) and a negative (-) terminal. They’re usually marked and easy to identify.
2. Connect the batteries: Take a wire and connect the positive terminal of the first battery to the negative terminal of the second battery. This is your series connection.
3. Check your connection: Now, if you measure the voltage across the negative terminal of the first battery and the positive terminal of the second battery, it should read 24V. Congratulations, you’ve just created a 24V battery system!
4. Connect to your device: The remaining negative and positive connections get wired to the component you want to power just as you would if you were using a single battery.

And there you have it. You’ve successfully connected two 12V batteries to make a 24V system. Give yourself a pat on the back!

Safety precautions to consider when connecting batteries

Now, before we wrap up, let’s talk about safety. Batteries are safe to use when handled correctly, but there are a few precautions you should always keep in mind:

• Wear protective gear: Always wear safety glasses and gloves when working with batteries.
• Work in a well-ventilated area: Batteries can produce harmful gases, so always work in a well-ventilated area.
• Avoid short circuits: Never allow the positive and negative terminals of a battery to touch each other or any conductive material.
• Use the right tools: Always use insulated tools when working with batteries to prevent accidental short circuits.

Remember, safety first! Working with batteries can be fun and rewarding, but it’s important to respect the power they hold and handle them with care. Happy tinkering, folks!

Practical Applications of a 24V System

Now that we’ve mastered the art of connecting two 12V batteries to make a 24V system, you might be wondering, “Where would I use a 24V system?” Well, my friends, you’d be surprised at how versatile and useful a 24V system can be. Let’s explore some of its applications.

Examples of where a 24V system is used

1. Large Vehicles: As I mentioned earlier, 24V systems are commonly used in large vehicles like trucks and buses. They provide the extra ‘oomph’ needed to start those big engines and power the various electrical systems onboard.

2. Industrial Applications: In the industrial world, 24V systems are often used in machinery and equipment. They provide a reliable power source that can withstand the demands of heavy-duty use.

3. Renewable Energy Systems: Here’s where things get really exciting. 24V systems are becoming increasingly popular in renewable energy installations, particularly solar power systems. They offer a balance of efficiency and power that’s ideal for these applications.

Benefits of using a 24V system

So, why go for a 24V system? Here are a few reasons:

• More Power: Simply put, a 24V system can deliver more power than a 12V system. This makes it ideal for applications that require a lot of juice.
• Efficiency: A 24V system is more efficient than a 12V system. It can deliver the same amount of power as a 12V system, but with half the current. This means less energy is lost as heat, and your wiring can be thinner and cheaper.
• Versatility: With a 24V system, you have the flexibility to power a wider range of devices and applications. It’s like having a Swiss Army knife in your electrical toolbox.

So there you have it, folks. The 24V system – is powerful, efficient, and versatile. It’s a bit like the superhero of the electrical world. And now that you know how to create your own 24V system, you can harness that power for yourself. So go forth and electrify!

Troubleshooting Common Issues

Alright, folks, we’ve had our fun connecting batteries and powering up all sorts of devices. But as with all things in life, sometimes things don’t go quite as planned. But fear not! Your friendly neighborhood battery expert is here to help you troubleshoot some common issues that might arise when connecting two 12V batteries to make a 24V system.

Common problems that might arise when connecting two 12V batteries to make 24V

1. No Power: You’ve connected everything, but there’s no power. This could be due to a faulty connection or a dead battery.

2. Overheating: If your batteries or wires are getting hot, it could be a sign of overloading or a short circuit.

3. Reduced Performance: If your 24V device isn’t performing as expected, it could be that your batteries are not fully charged or are nearing the end of their lifespan.

Tips on how to troubleshoot these issues

Now, let’s look at how to tackle these issues:

1. No Power: Check your connections. Make sure the positive terminal of one battery is connected to the negative terminal of the other. Also, check the condition of your batteries. If one or both are dead, you’ll need to replace them.

2. Overheating: This is a serious issue that needs immediate attention. Disconnect your batteries and check for any signs of damage or short circuits. If you’re unsure, it’s best to seek professional help.

3. Reduced Performance: Make sure your batteries are fully charged. If they’re old or have been heavily used, it might be time for a replacement.

Remember, folks, troubleshooting is part and parcel of working with batteries. It’s like being a detective, looking for clues and figuring out what went wrong. But with a bit of patience and a dash of know-how, you’ll be back up and running in no time. And remember, when in doubt, always consult with a professional. Safety first!

Conclusion

Well, folks, we’ve been on quite a journey together, haven’t we? We’ve delved into the world of 12V and 24V systems, learned about the magic that makes batteries work, and even got our hands dirty connecting two 12V batteries to make a 24V system.

We’ve seen how versatile and powerful a 24V system can be, powering everything from large vehicles to industrial machinery to renewable energy systems. And we’ve also learned how to troubleshoot some common issues, ensuring we can keep our 24V systems running smoothly.

But remember, this is just the tip of the iceberg. The world of batteries is vast and fascinating, and there’s always more to learn. So keep exploring, keep experimenting, and most importantly, keep having fun. Because at the end of the day, that’s what it’s all about.
