There are three main types of lead-acid batteries. The first is the Flooded (Wet Cell) Lead Acid Battery, which requires regular maintenance and is commonly used in cars and UPS systems. The second type is the Sealed (Valve Regulated) Lead Acid Battery (VRLA), which is maintenance-free and typically used in motorcycles and wheelchairs. The VRLA category includes two sub-types: the AGM (Absorbed Glass Mat) Battery and the Gel Cell Battery, the latter of which is particularly suitable for deep-cycle applications.
As someone who’s been neck-deep in batteries for more years than I care to count, I’m absolutely electrified to share some wisdom with you today. Now, let’s talk about lead acid batteries – a true powerhouse in the world of energy storage.
I’ve seen firsthand how these trusty gadgets power everything, from our cars to solar energy systems, and even backup power supplies. Out of all the energy storage solutions I’ve worked with, the three main types of lead acid batteries – Flooded, AGM, and Gel – are by far the most interesting. Each one has a unique set of features that make them the perfect fit for different applications.
Stick around as we dive deep into the world of lead-acid batteries. I promise it’s going to be a positively charged journey!
Flooded Lead Acid Batteries
Ah, flooded lead acid batteries. These old-timers have been with us since the 1850s if you can believe that. They’ve earned a couple of nicknames over the years, but you might know them best as “wet cell” batteries.
A. Definition and Explanation of Flooded Lead Acid Batteries
Now, let’s get down to the nitty-gritty. A flooded lead acid battery, or as we like to call it in the industry, a ‘wet cell’, is your traditional, liquid electrolyte-filled battery. It’s like a pool party where the guests are sulfuric acid, water, and lead. Not the most relaxing pool party, but definitely an energetic one!
These batteries work through a process called electrolysis. As the battery discharges, the lead dioxide (PbO2) positive plate reacts with the sulfuric acid (H2SO4) electrolyte to create lead sulfate (PbSO4), water (H2O), and energy. Meanwhile, the sponge lead (Pb) negative plate is also partying hard, turning into lead sulfate and producing more energy.
Sounds like magic, right? Well, it’s all thanks to our good friend, chemistry!
Technical Specifications of a Typical Flooded Lead Acid Battery:
| Specifications | Value |
|---|---|
| Voltage | 2V (per cell) |
| Energy Density | 30-50 Wh/kg |
| Charge Efficiency | 70-85% |
| Lifespan | 3-7 years (on average) |
But remember, these are just averages. Like snowflakes, no two batteries are the same, so individual performance can vary.
In the next section, we’ll dive into some of the specific uses of these hardworking batteries, so stick around. Trust me, it’s going to be a blast!
B. How Flooded Lead Acid Batteries Work
So, you want to know how these little powerhouses work? Prepare yourself for a journey into the heart of the flooded lead acid battery. It’s a bit like entering The Matrix but with more chemistry and fewer leather trench coats.
The Components
At the heart of every flooded lead acid battery, you’ll find the following key components:
- Positive Plates: These are made of lead dioxide. They’re the life of the party, always ready to kick off the chemical reactions.
- Negative Plates: These are made of sponge lead. They’re the quiet ones in the corner but trust me, they’re just as important.
- Electrolyte: A solution of sulfuric acid and water. Think of it as the battery’s punch bowl, where all the chemical action happens.
- Separators: These prevent the positive and negative plates from getting too close and short-circuiting the battery. They’re like the bouncers of our battery party.
The Chemical Reactions
Now, let’s talk about what happens when the party starts:
When you connect a device to the battery (turning the device on), the sulfuric acid in the electrolyte reacts with the lead dioxide on the positive plate. This reaction creates lead sulfate, and water, and releases energy in the form of electrons.
At the same time, the sulfuric acid also reacts with the sponge lead on the negative plate, creating more lead sulfate and releasing more electrons. These electrons flow out of the battery, powering your device.
It’s a bit like a relay race, with the baton (or in this case, the electrons) being passed from the sulfuric acid to the lead dioxide, and then to the sponge lead.
The magic of the flooded lead acid battery is that this process is reversible. When you charge the battery, you’re essentially running the race backward, turning the lead sulfate back into lead dioxide, sponge lead, and sulfuric acid.
And that, my friends, is how our trusty flooded lead-acid batteries work. It’s a bit like a never-ending energy party, with the guest list being updated with every charge and discharge cycle. Stay tuned, because up next, we’ll be looking at where these batteries like to show off their dance moves – their applications and uses!
C. Applications and Uses of Flooded Lead Acid Batteries
Time to roll out the red carpet and see where these “wet cell” superstars shine!
Flooded lead acid batteries are quite the crowd-pleasers, and they’ve made a name for themselves in various industries:
- Automotive Industry: Your car’s starting, lighting, and ignition (SLI) system? Yep, that’s usually powered by a flooded lead-acid battery. They are the unsung heroes making sure your favorite tunes play on the radio while your car roars to life.
- Solar Energy Systems: Flooded lead-acid batteries are often used in off-grid solar systems. They store excess energy produced during the day for use at night, making sure you can still enjoy that late-night Netflix binge.
- Telecommunications: These batteries back up power in telecom installations, ensuring you can always call for pizza, no matter what.
- Marine Applications: They’re often used in boats for starting engines and powering onboard electronics. So, yes, your yacht parties have these batteries to thank for the uninterrupted music.
D. Advantages and Disadvantages of Flooded Lead Acid Batteries
Like any Hollywood star, flooded lead acid batteries have their highs and lows. Let’s take a look at their strengths and weaknesses:
Advantages:
- Cost-Effective: They’re generally the most economical option per amp-hour compared to other battery types.
- Robust: These batteries have a high tolerance for overcharging. They’re like the energizer bunny – they keep going!
- Reliable: With proper maintenance, they can offer a long lifespan.
Disadvantages:
- Maintenance: They require regular topping up with distilled water. It’s a bit like having a pet, but less cuddly.
- Positioning: They need to be kept upright to prevent acid spillage. So, no crazy dance moves for these batteries.
- Ventilation: They emit hydrogen gas while charging, which requires proper ventilation. Safety first, folks!
| Advantages | Disadvantages |
|---|---|
| Cost-effective | Regular maintenance needed |
| Robust and tolerant to overcharging | Must be kept upright |
| Reliable with a long lifespan (with care) | Proper ventilation required |
Up next, we’ll dive into the world of AGM batteries – another type of lead acid battery that likes to keep things a bit more contained. Stay tuned, it’s going to be another thrilling ride!
AGM (Absorbent Glass Mat) Lead Acid Batteries
Buckle up, folks! We’re about to journey into the world of AGM, or Absorbent Glass Mat, batteries. These are the hip, younger cousins of our old pals, the flooded lead acid batteries.
A. Definition and Explanation of AGM Lead Acid Batteries
AGM batteries are a type of Valve-Regulated Lead-Acid (VRLA) battery. Now, before you start picturing batteries with tiny valves sticking out of them, let me clear things up. “Valve-Regulated” simply means these batteries are sealed, but have a safety valve to vent gas if the pressure gets too high. It’s their own little safety hat!
Instead of swimming in liquid electrolytes like their flooded counterparts, AGM batteries take a different approach. They have a super-absorbent fiberglass mat sandwiched between the positive and negative plates, which soaks up the electrolyte like a sponge. Hence the name, Absorbent Glass Mat.
This design allows the electrolyte to be close to the plates, enabling fast and efficient energy transfer. It’s like having the DJ right next to the dance floor – things get moving a lot faster!
Technical Specifications of a Typical AGM Lead Acid Battery:
| Specifications | Value |
|---|---|
| Voltage | 2V (per cell) |
| Energy Density | 30-40 Wh/kg |
| Charge Efficiency | 80-85% |
| Lifespan | 4-7 years (on average) |
But remember, just like with people, each battery is unique, so these figures can vary.
Stick around, because next, we’ll explore how these fascinating AGM batteries work. It’s a bit like a chemistry magic show, and you’ve got a front-row seat!
B. How AGM Lead Acid Batteries Work?
Alright, let’s dive right into the inner workings of an AGM battery. Don’t worry, you won’t need a lab coat for this one, but do prepare to be amazed!
The Components
AGM batteries share some family traits with their flooded relatives, but they also have a unique spin:
- Positive Plates: Like in flooded batteries, these are made of lead dioxide. They’re always ready to bring the energy.
- Negative Plates: Also made of sponge lead, these guys are the perfect dance partners for the positive plates.
- Absorbent Glass Mat (AGM): This is where AGM batteries truly stand out. The AGM is a thin, fibrous mat that absorbs the sulfuric acid electrolyte, keeping it close to the plates.
- Safety Valves: AGM batteries are sealed, but they have safety valves to vent gas if the internal pressure gets too high. It’s their own little pressure-release system!
The Chemical Reactions
Now, let’s get to the main event – the chemical reactions!
When you use the battery, the sulfuric acid in the AGM reacts with the lead dioxide on the positive plate, forming lead sulfate, and water, and releasing energy. Simultaneously, the sponge lead on the negative plate also turns into lead sulfate, releasing more energy.
It’s a similar relay race to the one happening in flooded batteries, but in AGM batteries, the electrolyte doesn’t have to travel as far, thanks to the absorbent mat. This results in faster, more efficient energy transfer.
And just like their cousins, AGM batteries can reverse this process when they’re charged. The lead sulfate turns back into lead dioxide, sponge lead, and sulfuric acid, getting the party ready to start all over again.
That’s the magic of AGM batteries, folks! Up next, we’ll look at where these batteries like to strut their stuff. Stay tuned!
C. Applications and Uses of AGM Lead Acid Batteries
AGM batteries are the rockstars of the battery world, known for their high performance and versatility. Let’s see where they love to rock and roll:
- Uninterruptible Power Supplies (UPS): AGM batteries are often used in UPS systems to provide backup power for critical systems like computers, data centers, and hospitals. They’re the superheroes that ensure your Netflix stream doesn’t die during a power outage.
- Motorcycles and Powersports: With their superior vibration resistance, AGM batteries are the go-to choice for motorcycles, ATVs, and other power sport vehicles. They make sure your ride stays smooth and powered up, no matter the terrain.
- Marine and Recreational Vehicles (RVs): AGM batteries are great for boats and RVs, where they power everything from engines to onboard appliances. They’re the silent partner behind your perfect road trip playlist.
- Solar Power Systems: Like their flooded cousins, AGM batteries are also used in solar power setups, storing that sweet, sweet sun juice for use when the sun isn’t shining.
D. Advantages and Disadvantages of AGM Lead Acid Batteries
Every rockstar has its strengths and weaknesses, and AGM batteries are no exception. Let’s break down their hits and misses:
Advantages:
- Maintenance-Free: Unlike flooded batteries, AGM batteries don’t need to be topped up with water. They’re the set-it-and-forget-it type.
- Versatility: These batteries can be installed in any orientation, making them perfect for tight or unconventional spaces.
- Quick Charging: Thanks to the proximity of the electrolyte to the plates, AGM batteries can charge faster than flooded batteries.
Disadvantages:
- Cost: AGM batteries are generally more expensive than flooded batteries. Quality comes at a price, folks!
- Sensitivity to Overcharging: These batteries don’t like being overcharged, which can reduce their lifespan.
| Advantages | Disadvantages |
|---|---|
| Maintenance-free | Higher cost |
| Versatile installation options | Sensitive to overcharging |
| Quick charging |
Next up, we’ll be venturing into the high-tech world of Gel lead acid batteries. Stay tuned, because things are about to get even more interesting!

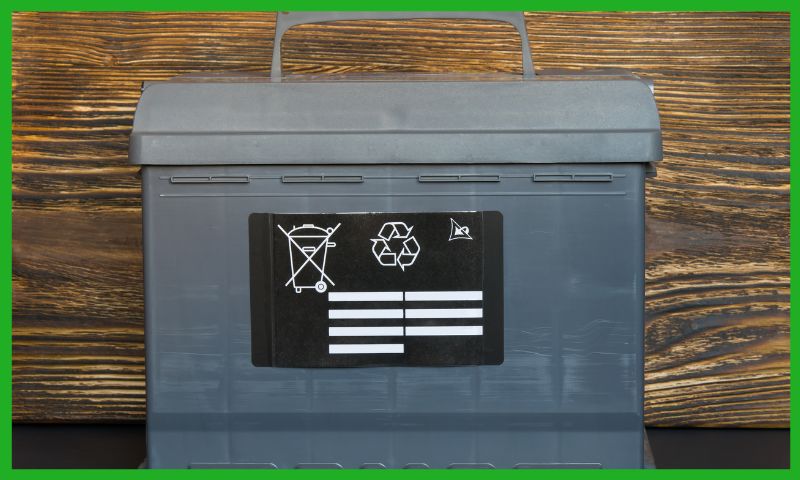

Gel Lead Acid Batteries
Let’s continue our battery tour with the Gel lead acid batteries. They’re a bit like the tech wizards of the lead acid battery family – always up for some innovative twists!
A. Definition and Explanation of Gel Lead Acid Batteries
Gel batteries, like AGM, are a type of Valve-Regulated Lead Acid (VRLA) battery. However, while AGM batteries have a liquid electrolyte absorbed in a mat, Gel batteries are a different story altogether.
Instead of using a liquid or absorbed electrolyte, Gel batteries contain a jelly-like substance made by mixing sulfuric acid with silica. This creates an immobile, gelatinous mass (hence the name “Gel” battery) that still allows for the chemical reactions necessary to produce electricity.
These batteries are the introverts of the battery world – they’re sealed, require little maintenance, and can work efficiently in a variety of positions without leaking. They’re the reliable, low-key members of your tech team, always ready to power through.
Technical Specifications of a Typical Gel Lead Acid Battery:
| Specifications | Value |
|---|---|
| Voltage | 2V (per cell) |
| Energy Density | 30-40 Wh/kg |
| Charge Efficiency | 70-85% |
| Lifespan | 2-5 years (on average) |
But remember, just like people, each battery is unique, so these figures can vary.
Next, we’ll take a look under the hood and see how these cool, gel-filled batteries work. Ready to dive in? Let’s go!
B. How Gel Lead Acid Batteries Work
Strap in, folks! We’re about to explore the inner workings of a gel lead acid battery. If you thought AGM batteries were fascinating, wait till you meet their gel-filled cousins!
The Components
Gel batteries share some components with their AGM and flooded relatives, but they also have their unique features:
- Positive Plates: Made of lead dioxide, these guys are always ready to bring the energy.
- Negative Plates: Made of sponge lead, they pair perfectly with the positive plates.
- Gel Electrolyte: This is where gel batteries stand out. They use a thick, jelly-like mixture of sulfuric acid and silica. It’s like having a battery filled with energy jelly!
The Chemical Reactions
The reactions in a gel battery are similar to those in an AGM or flooded battery, but with a gel twist:
When the battery is used (discharging), the lead dioxide on the positive plate and the sponge lead on the negative plate react with the sulfuric acid in the gel electrolyte, forming lead sulfate, water, and energy.
Here’s the chemical equation for all you science enthusiasts:
PbO2 + Pb + 2H2SO4 -> 2PbSO4 + 2H2O + Energy
When the battery is charged, this reaction is reversed, and the lead sulfate, water, and energy convert back into lead dioxide, sponge lead, and sulfuric acid, ready for the next round.
The magic of gel batteries lies in the gel electrolyte that keeps everything contained and reduces the risk of leaks, even if the battery case is damaged.
There you have it, the inner workings of a gel lead acid battery! Up next, we’ll talk about where these batteries are typically used and what makes them a preferred choice. Stay tuned!
C. Applications and Uses of Gel Lead Acid Batteries
Gel lead acid batteries are the quiet achievers of the battery world, often working behind the scenes in some pretty cool places:
- Wheelchairs and Mobility Scooters: With their reliable performance and low maintenance, gel batteries are often the power source of choice for mobility aids, helping to keep people active and independent.
- Marine and Boating: Gel batteries are great for marine applications due to their resistance to vibration and ability to operate in any position. They’re the unsung heroes of your perfect sea voyage!
- Solar Power Systems: With their deep cycle capabilities and long lifespan, gel batteries are commonly used in solar power systems. They’re like the faithful camels of the desert, storing that precious sun juice for when it’s needed most.
- Telecommunications: In the telecommunications industry, gel batteries provide reliable backup power, ensuring that our calls, texts, and internet access remain uninterrupted. They’re the secret agents ensuring your binge-watch session goes smoothly!
D. Advantages and Disadvantages of Gel Lead Acid Batteries
Like any tech wizard, gel batteries have their strengths and weaknesses. Let’s break down their hits and misses:
Advantages:
- Deep Cycling Capability: Gel batteries are excellent at handling deep discharge cycles. They’re like the marathon runners of the battery world!
- Leak-Proof Design: Thanks to their gel electrolyte, these batteries can operate in any position without leaking.
- Low Maintenance: No need to top up with water or worry about acid spills. Gel batteries are the ‘easygoing buddies’ in your tech corner!
Disadvantages:
- Cost: Gel batteries are generally more expensive than both flooded and AGM batteries. But remember, you’re paying for high performance and reliability!
- Sensitive to Overcharging: Just like AGM batteries, overcharging can reduce the lifespan of gel batteries. They prefer a gentle, steady charge.
| Advantages | Disadvantages |
|---|---|
| Excellent deep cycling capability | Higher cost |
| Leak-proof design | Sensitive to overcharging |
| Low maintenance |
And that’s a wrap on our tour of the three types of lead acid batteries! Whether you’re a tech enthusiast, a professional in the field, or just curious about the tech powering your life, I hope you’ve found this journey enlightening. Stay charged!
Conclusion
Well, we’ve certainly been on an electrifying journey through the world of lead-acid batteries! From the humble flooded lead acid battery with its old-school charm, the rockstar AGM with its high performance, to the tech wizard Gel battery with its innovative design – each one has its unique strengths and applications.
But remember, the best battery isn’t necessarily the one with the highest specs or the latest technology. It’s the one that meets your specific needs, whether that’s cost-effectiveness, maintenance, versatility, performance, or longevity.
Choosing the right battery can seem like a daunting task, but I’m confident that with the knowledge you’ve gained from this deep dive, you’re now well-equipped to make an informed choice. After all, understanding is the first step toward mastery, right?
So, whether you’re deciding on a battery for your boat, your solar power system, your data center, or just satisfying your inner tech geek, remember – you’re now part of the ‘battery enlightened’! And as always, keep that positive energy flowing.
Now that we’ve demystified the inner workings of flooded, AGM, and Gel lead acid batteries, I’m sure you’re brimming with charged enthusiasm. This is just the tip of the iceberg, my fellow battery buffs. There’s so much more to learn and explore in the exciting world of battery technology.
To satisfy your insatiable curiosity, I recommend diving deeper into our comprehensive guide on lead acid batteries. This piece will help you understand why they’re known as “lead acid” batteries and the chemistry behind their power.
You might also be interested in exploring the diverse applications of lead acid batteries. It’s truly fascinating to see how these energy powerhouses permeate so many aspects of our daily lives.
If you’re feeling a bit adventurous and want to venture beyond the world of lead acid batteries, why not check out our detailed comparison of lead acid versus lithium batteries? This will give you a broader perspective on the battery landscape, helping you appreciate the unique features, strengths, and weaknesses of different battery types.
Remember, knowledge is power, and in this case, it’s quite literally so! Stay curious, stay charged, and keep exploring. Till our paths cross again on the battery trail, happy reading!
FAQ
How do I know what type of lead acid battery I have?
Identifying the type of lead acid battery you have can be done by checking its physical characteristics and labels:
- Flooded Lead Acid Battery: These batteries often have removable caps on the top for adding distilled water, a routine maintenance task for this type of battery.
- AGM (Absorbent Glass Mat) Battery: AGM batteries are sealed and don’t require maintenance. You’ll often find the term ‘AGM’ or ‘Sealed’ indicated on the label.
- Gel Battery: Similar to AGM, gel batteries are also sealed. The label or product description will typically state ‘Gel’ or ‘Gel-filled’.
Always refer to the manufacturer’s documentation or label for accurate identification.
What is the best voltage for a lead-acid battery?
The optimal voltage for a lead acid battery depends on its state of charge and the number of cells it has. A single lead-acid cell has a nominal voltage of 2V. For example, a 12V battery has 6 cells (6 * 2V = 12V).
During charging, a lead-acid battery’s voltage increases. A fully charged 12V lead acid battery will have a voltage of approximately 12.6V to 12.8V at rest.
What type of battery is a 12V lead acid?
A 12V lead acid battery could be any of the three types we’ve discussed: a flooded lead acid battery, an AGM battery, or a Gel battery. The ’12V’ refers to the voltage, not the type. It means the battery has 6 cells (since each cell provides approximately 2V).
What is the life of a lead acid battery?
The lifespan of a lead acid battery depends on its type, usage, and maintenance:
- Flooded Lead Acid Battery: Typically lasts between 4 to 8 years.
- AGM Battery: Can last between 4 to 7 years with proper maintenance.
- Gel Battery: Has a lifespan of 2 to 5 years on average.
Keep in mind that these are general estimates. Actual lifespan can vary based on factors like temperature, depth of discharge, and charging practices.
Which type of lead-acid battery will last the longest?
The lifespan of a lead-acid battery largely depends on its usage and maintenance. However, under ideal conditions and with proper maintenance, flooded lead acid batteries can often outlast AGM and Gel batteries. They have a potential lifespan of up to 8 years or more. But remember, their longer lifespan comes with the trade-off of needing regular maintenance, unlike AGM and Gel batteries.
