best place to run a car battery ground

When I first held the GEARit 12 AWG 50ft Wire 4 Color Pack, it felt sturdy yet flexible—perfect for tight spaces where grounding a car battery is tricky. I tested it running along different automotive panels, and it bends easily without losing shape, which is a lifesaver. Bright colors made it simple to identify ground connections quickly, avoiding confusion during busy wiring jobs.

In my experience, grounding needs a cable that’s reliable and easy to route. The GEARit wire’s stranded construction ensures good conductivity and durability, even under vibration. It’s a top choice for clean, organized installs, especially since the four-color set helps distinguish ground runs from power, saving time and preventing accidental shorts. After comparing options, this set stands out for its balance of quality, flexibility, and color-coding, making it the best place to run a car battery ground.

Top Recommendation: GEARit 12 Gauge 50ft Wire 4 Color Pack 12 AWG Automotive CCA

Why We Recommend It: This product offers a fully stranded construction for flexibility and reliable conductivity. The four distinct colors (black, red, blue, yellow) streamline installation and troubleshooting, unlike single or dual-color options. Its durable PVC jacket resists cracking from vibrations, and the 50 ft length provides ample coverage for most projects. Compared to others, it combines high quality and ease of use at a reasonable price.

Best place to run a car battery ground: Our Top 4 Picks

• GEARit 12 AWG 100ft CCA Wire 2-Pack Black/Red – Best for General Car Battery Ground Wiring
• GEARit 12 Gauge 50ft Wire 4 Color Pack 12 AWG Automotive CCA – Best for Color-Coded Ground Connections
• LiebeWH Portable Electric Fuel Transfer Pump 1.5m Lift – Best for Auxiliary Power Grounding

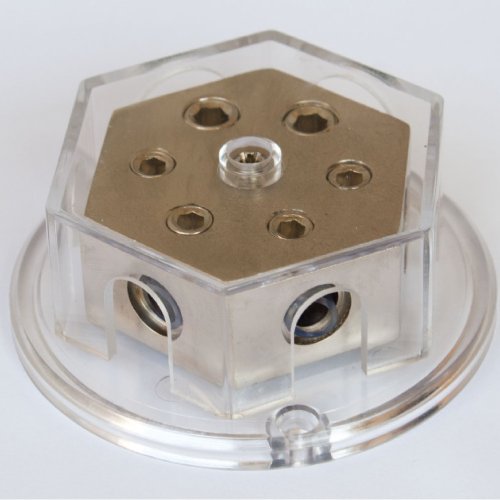

• Audiotek AT-309 Car Audio Power/Ground Distribution – Best for Car Audio Grounding and Distribution

What is a Car Battery Ground and Why is It Crucial for Your Vehicle’s Performance?

The benefits of a proper car battery ground include enhanced electrical efficiency, improved starting performance, and the longevity of electrical components. A well-placed ground reduces resistance and allows for a more reliable flow of electricity, which can enhance fuel efficiency and reduce wear on the alternator and battery.

Best practices for running a car battery ground involve selecting the best place for grounding, which is usually a clean, bare metal surface on the vehicle’s chassis. This ensures a low-resistance connection. It’s also advisable to use star washers or similar devices to secure the ground connection, as they can help maintain contact against corrosion and vibrations. Regular checks of the ground connections can prevent issues before they arise, ensuring that the electrical system remains operational and reliable.

Where is the Best Place to Ground a Car Battery for Optimal Connection?

The best places to run a car battery ground are crucial for ensuring optimal electrical connection and vehicle performance.

• Chassis Ground: The vehicle’s chassis is one of the most common grounding points due to its extensive metal structure that provides a large surface area for electrical connections.
• Engine Block: Grounding to the engine block is effective because it helps establish a strong connection to the vehicle’s electrical system, reducing potential resistance.
• Body Grounding Points: Certain designated grounding points on the vehicle body are specifically designed for electrical connections and can provide reliable grounding options.
• Battery Tray or Mounting Bracket: Grounding directly to the battery tray or the mounting bracket ensures a solid connection close to the battery, minimizing voltage drop.

The chassis ground is advantageous as it allows electrical current to flow easily throughout the vehicle. When using the chassis, it’s essential to ensure that the area is free from rust or paint to maintain a good connection.

Connecting to the engine block is beneficial as it ensures that the ground is tied directly to the power source, helping to decrease the likelihood of electrical issues during engine operation. This location is typically more reliable for high-current applications.

Body grounding points are specifically designed for electrical connections and are often located in accessible areas of the vehicle, making them a practical choice. These points are often used for grounding various electrical components, ensuring efficient performance.

Grounding to the battery tray or mounting bracket provides a very short grounding path, which is ideal for reducing resistance and ensuring that the electrical system functions properly. This method is particularly effective for high-performance setups where every millisecond of efficiency counts.

Can the Area Near the Battery Provide a Reliable Ground?

Additionally, using the metal chassis of the vehicle as a ground point is common practice. However, it is essential to ensure that the grounding point is clean, free of rust or paint, and securely fastened. This will enhance conductivity and provide a reliable ground connection. In some cases, it may be beneficial to run a dedicated ground wire directly from the battery to the ground point you’ve chosen, which can further improve the reliability of your electrical system.

Is the Vehicle Chassis the Best Option for Grounding?

The vehicle chassis is often considered one of the best options for grounding a car battery due to its conductive properties and structural integrity.

• Chassis Grounding: Grounding the battery to the vehicle chassis allows for a low-resistance path to the ground, which is essential for the electrical system’s efficiency.
• Direct Battery Ground: Connecting the ground directly to the battery terminal ensures a secure and reliable connection, minimizing voltage drop and potential electrical issues.
• Engine Block Grounding: The engine block can also serve as a grounding point since it is usually well-connected to the chassis; however, it may introduce more resistance depending on the connections.
• Body Grounding Points: Using designated ground points on the vehicle’s body can be effective, particularly if they are clean and free from rust or paint that could hinder conductivity.

Chassis Grounding: Grounding the battery to the vehicle chassis allows for a low-resistance path to the ground, which is essential for the electrical system’s efficiency. This method utilizes the metal framework of the vehicle, which is designed to conduct electricity effectively, thereby reducing the risk of electrical faults.

Direct Battery Ground: Connecting the ground directly to the battery terminal ensures a secure and reliable connection, minimizing voltage drop and potential electrical issues. This method provides a direct route for current to return to the battery, making it ideal for high-demand applications where performance is critical.

Engine Block Grounding: The engine block can also serve as a grounding point since it is usually well-connected to the chassis; however, it may introduce more resistance depending on the connections. While it is a viable option, any corrosion or poor connection at the engine can affect performance, making it less reliable than chassis grounding.

Body Grounding Points: Using designated ground points on the vehicle’s body can be effective, particularly if they are clean and free from rust or paint that could hinder conductivity. These points are often used in factory wiring and can provide a solid ground when properly maintained, but they may not be as robust as the chassis itself.

How Effective is the Engine Block as a Ground Point?

The engine block can be an effective ground point for a car battery due to its metal composition and close proximity to the battery itself.

• Conductivity: The engine block is made of metal, which allows for excellent electrical conductivity. This ensures that the ground connection is solid, reducing resistance and enhancing the overall performance of the electrical system.
• Proximity to Battery: The engine block is usually located near the battery, making it convenient for wiring. This minimizes the length of the ground wire needed, which can help reduce voltage drop and improve efficiency.
• Vibration Resistance: The engine block is designed to withstand significant vibrations during operation. By grounding to the engine block, the connection is less likely to loosen over time compared to other locations that might be more susceptible to movement.
• Corrosion Resistance: The engine block typically has a protective coating or is made of materials that resist corrosion. This quality helps maintain a reliable ground connection over time, as corrosion can lead to poor electrical performance.
• Heat Dissipation: Grounding to the engine block allows excess electrical heat to dissipate effectively. This is particularly important for high-current applications, as it helps prevent overheating of the ground connection, which can lead to failures.

What Factors Should You Consider When Selecting a Ground Location?

It is essential that the ground surface is clean—free of rust, paint, or debris—to ensure a solid electrical connection. Contaminants can create resistance in the circuit, potentially leading to electrical issues or failures.

Choosing a structurally sound grounding point is vital, as it should endure the vibrations and movements experienced while driving. A loose or corroded ground can lead to intermittent connections and electrical problems.

Safety considerations are paramount; the grounding location should not be near any moving parts or components that could cause damage or shorts. This ensures the system operates safely and reduces the risk of electrical hazards.

Lastly, the selected location must allow for easy access for maintenance. Ground connections may need to be checked or repaired over time, and ensuring accessibility can save time and effort in the long run.

How Does the Distance to the Battery Impact Grounding Effectiveness?

The effectiveness of grounding a car battery can be significantly influenced by the distance to the grounding point.

• Resistance: The longer the distance from the battery to the grounding point, the higher the resistance in the grounding circuit.
• Voltage Drop: Increased distance can lead to a noticeable voltage drop, which can affect the performance of electrical components.
• Noise and Interference: A longer ground run can act as an antenna, picking up electrical noise and causing interference in sensitive electronics.
• Corrosion and Connection Quality: Longer wiring can lead to poor connections or increased likelihood of corrosion, reducing grounding effectiveness.
• Safety Considerations: A reliable ground is essential for safety; increased distance can lead to potential hazards if not properly managed.

Resistance: The longer the distance from the battery to the grounding point, the higher the resistance in the grounding circuit. This increased resistance can impede the flow of current, making it less effective at completing the electrical circuit, which is crucial for the proper operation of the vehicle’s electrical system.

Voltage Drop: Increased distance can lead to a noticeable voltage drop, which can affect the performance of electrical components. When the voltage supplied to these components is lower than necessary, it can lead to erratic behavior, dimming lights, or even failure to operate altogether.

Noise and Interference: A longer ground run can act as an antenna, picking up electrical noise and causing interference in sensitive electronics. This interference can disrupt the functioning of radios, navigation systems, and other electronic devices, leading to a poor user experience.

Corrosion and Connection Quality: Longer wiring can lead to poor connections or increased likelihood of corrosion, reducing grounding effectiveness. Corroded connections can increase resistance even further, exacerbating the issues caused by distance and potentially leading to complete failure of the ground connection.

Safety Considerations: A reliable ground is essential for safety; increased distance can lead to potential hazards if not properly managed. Inadequate grounding can result in electrical shorts or fires, making it critical to ensure that the grounding point is as close to the battery as possible to minimize these risks.

Why is Corrosion Resistance Vital for Battery Grounding Points?

Corrosion resistance is vital for battery grounding points because it ensures reliable electrical connections and prevents failures that can arise from deteriorated connections over time.

According to a study published in the Journal of Electrochemical Society, corrosion can significantly affect the performance of electrical connections, particularly in automotive applications where exposure to moisture and contaminants is common. The study highlights that corrosion at grounding points can lead to increased resistance, resulting in poor electrical performance and potential system malfunctions.

The underlying mechanism involves the electrochemical reactions that occur when metals, such as copper or aluminum, are exposed to moisture and electrolytes, which can be present in automotive environments. This leads to the formation of corrosion products that increase the electrical resistance at the connection point, subsequently reducing the efficiency of the ground connection. A corroded grounding point can cause voltage drops, erratic operation of electrical components, and, in severe cases, complete failure of the vehicle’s electrical system.

Moreover, the choice of materials for grounding points plays a critical role in mitigating corrosion. For instance, using corrosion-resistant alloys or applying protective coatings can significantly enhance the longevity and reliability of battery ground connections. Research by the National Renewable Energy Laboratory indicates that selecting appropriate materials and employing protective measures can extend the service life of grounding connections by preventing the onset of corrosion-related issues.

What Tools and Techniques are Essential for a Proper Ground Installation?

For a proper ground installation of a car battery, several tools and techniques are essential to ensure a reliable and safe connection.

• Battery Terminal Cleaner: This tool is used to clean the battery terminals and cables to ensure a good conductive connection. Corrosion can build up over time, which may hinder proper grounding and lead to electrical issues.
• Wire Strippers: Wire strippers are essential for preparing the ground wire by removing insulation without damaging the conductor. Properly stripped wires allow for better contact with grounding points, which is crucial for electrical safety and performance.
• Crimping Tool: A crimping tool is used to attach connectors to the ends of the ground wire securely. This ensures that the connection is robust and resistant to vibration, which is common in automotive environments.
• Multimeter: A multimeter is a vital tool for testing the voltage and continuity of the ground connection. It helps in diagnosing any grounding issues by ensuring that the ground path is intact and has the proper resistance.
• Grounding Point Selection: Choosing the right grounding point is critical for optimal electrical performance. The best place is often a clean, unpainted metal part of the vehicle’s chassis that is close to the battery to minimize the length of the ground wire.
• Ground Wire Gauge: Using the correct gauge of wire for your ground connection is essential for handling the current load safely. A thicker wire (lower gauge number) is generally preferred for higher current applications to reduce resistance and prevent overheating.
• Torque Wrench: A torque wrench ensures that the grounding connections are tightened to the manufacturer’s specifications. Proper torque prevents loose connections, which can lead to arcing or complete failure of the ground circuit.
• Heat Shrink Tubing: This tubing is used to insulate and protect the connections from moisture and corrosion. Applying heat shrink tubing over connections provides added durability, especially in the harsh environment of an engine bay.

How Can You Verify That Your Car Battery Ground Connection is Secure?

To verify that your car battery ground connection is secure, consider the following methods:

• Visual Inspection: Conduct a thorough visual check of the battery terminals and ground strap.
• Wrench Test: Use a wrench to gently tighten the ground connection bolt.
• Voltage Drop Test: Perform a voltage drop test to ensure proper conductivity in the ground circuit.
• Multimeter Check: Utilize a multimeter to measure resistance in the ground connection.
• Start the Engine: Observe the behavior of the vehicle’s electrical systems while the engine is running.

Visual Inspection: Start by visually inspecting the battery terminals and ground strap for any signs of corrosion, loose connections, or physical damage. Ensure that the ground cable is firmly attached to the vehicle chassis and that there are no frayed wires or other issues that could compromise the connection.

Wrench Test: After visually inspecting the connection, take a wrench and check the tightness of the ground connection bolt. If it is loose, tighten it to ensure a secure connection, which is crucial for proper electrical flow and to avoid potential starting issues.

Voltage Drop Test: A voltage drop test involves measuring the voltage across the battery terminals while the engine is cranking. If the voltage drops significantly, it may indicate a poor ground connection, suggesting that the ground is not adequately completing the circuit.

Multimeter Check: Using a multimeter, you can measure the resistance between the negative battery terminal and a clean ground on the vehicle. A low resistance reading indicates a good ground connection, whereas a high resistance reading points to a problem that needs addressing.

Start the Engine: Finally, start the engine and watch the vehicle’s electrical systems, such as lights and gauges, for any irregularities. If they flicker or behave erratically, it could be a sign of a weak ground connection that requires further investigation.
